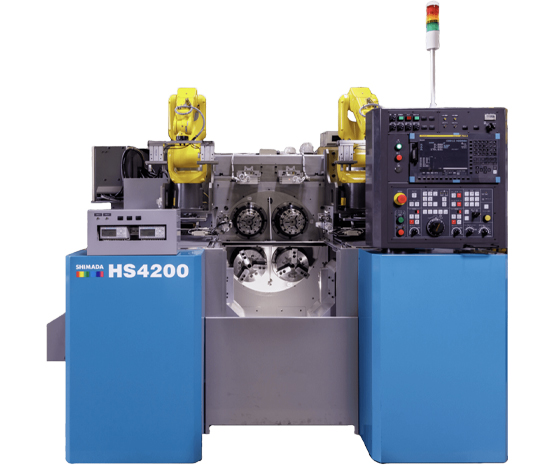

Shimada-Kitako HS4200n CNC Lathe

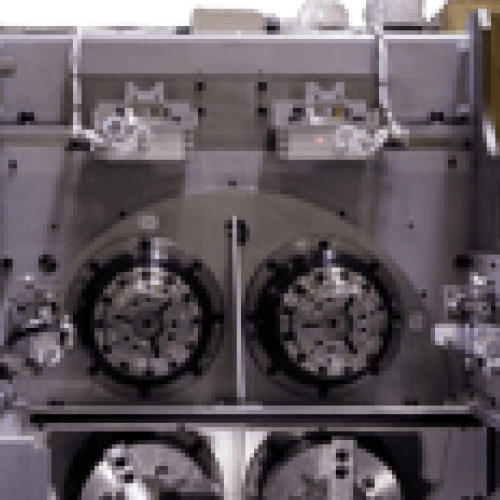

4 spindles close up

HS4200n Ultra High-Speed Production CNC Lathe with High-Speed Automatic Part Loading System

• The newest version of the uniquely designed 4-spindle lathe.
• By increasing the rapid feed rate on each axis, spindle idle time is greatly reduced, and efficiency has been increased.
• Wide-ranging machine layouts and options are offered to meet a range of requirements.
• HS4200n machine also available (with part loading system)

Features

4 Spindle Unit, 2 Machine While 2 Are Loaded
4-SPINDLE DRUM TURRET (2 Machining Spindles / 2 Loading Spindles)

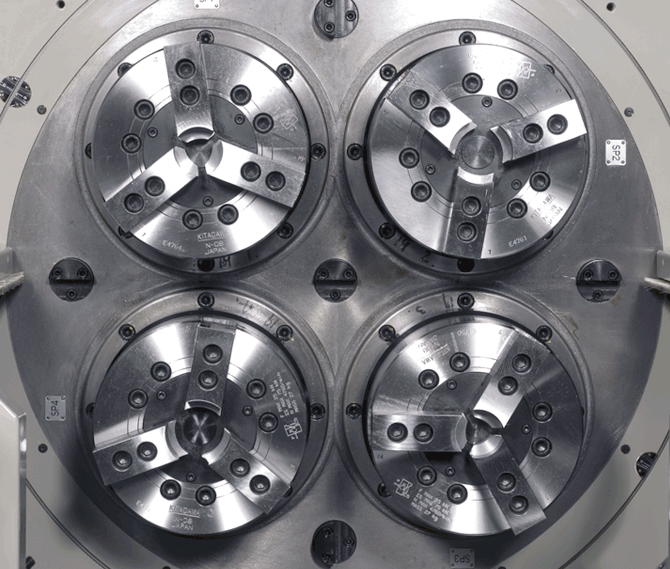

Spindles Mounted to Carrier Drum
Spindles Mounted to Carrier Drum

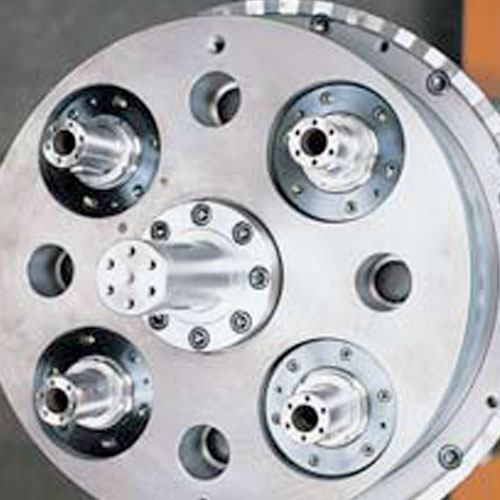

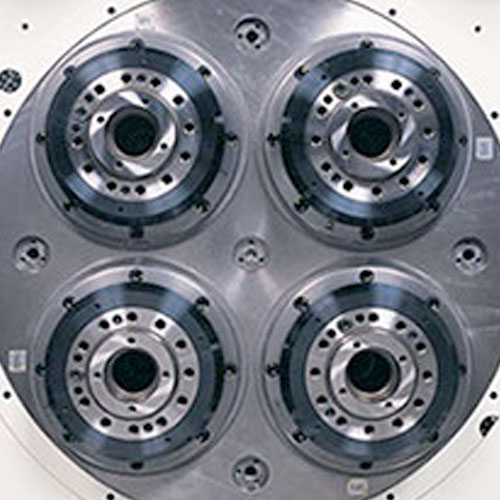

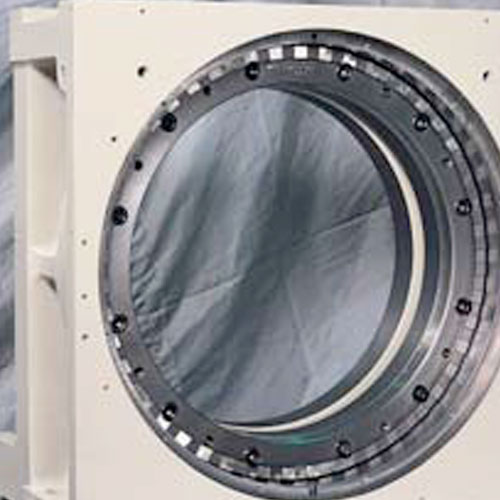

Large Curvic Coupling for Accuracy
LARGE CURVIC COUPLING TO ENSURE ACCURACY

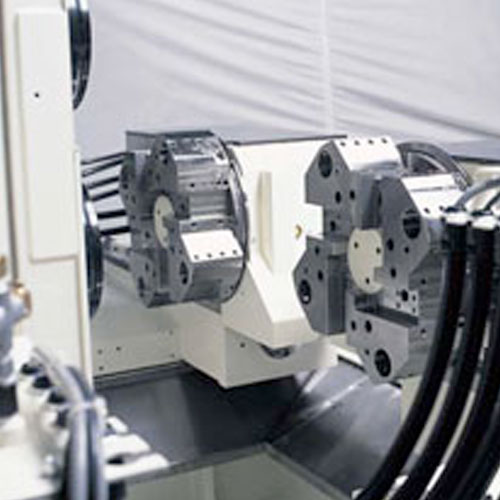

8-Station Turret
STANDARD 8-STATION TOOL TURRETS (L side and R side)

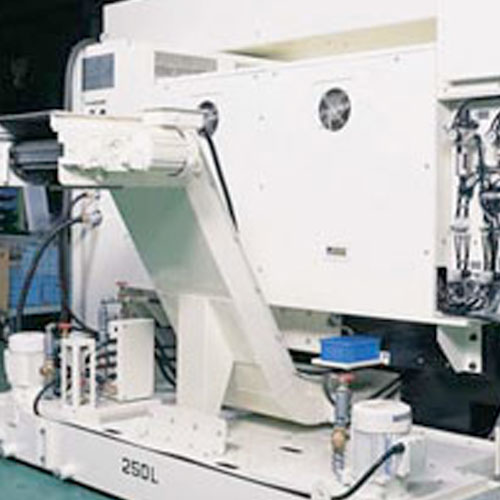

Chip Conveyor
Chip Conveyor

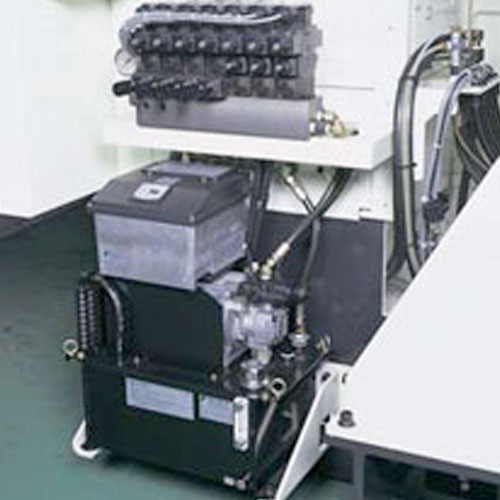

HYDRAULIC UNIT
Hydraulic Unit

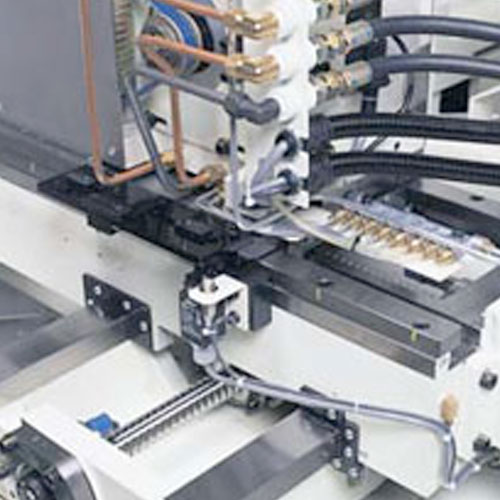

Box-Shaped Slideways
Box-Shaped Slideways

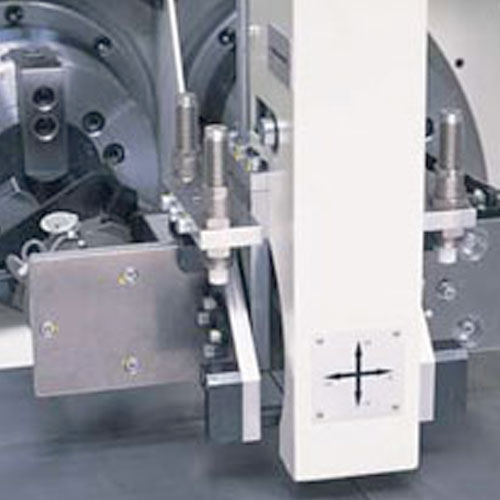

Work Reversing Unit
Work Reversing Unit
Loading/Unloading
Loading/Unloading

Main Specifications

Model HS4200n
Max. Turning Diameter and Length 7.8" x 4"
Chuck Size 8"
Spindle Nose A2-6
Spindle Motor 15HP / 20HP
Maximum Spindle Speed 4,500 rpm (Option: 5,000 rpm)
Carrier Index 1.5 seconds / 180
X-Axis Travel 6.3"
Z-Axis Travel 9.8"
Rapid Traverse 945 IPM (X), 1181 IPM (Z)
Turret 8 Station Turret x 2
Turret Index 0.3 second per Station
